Ultimate9 LED Light Bar 20"
Face the challenges of the dark with the Ultimate9 LED Light Bars.
Our sleek, single row LED bars incorporate a screw-less bezel design for superior sealing against the elements, fitted with Gore® PolyVents for ultimate housing ventilation.
Encased in high-grade aluminium and protected by impact-resistant Lexan® Polycarbonate lenses, their rugged construction will last for years to come.
Â
Features:
-
Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
IP68Â for long term submersion and total dust ingress.
IP69K for stream jet cleaning. - Ventilation: Gore® PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
- Housing: 6063-grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont® coating.
- Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
- Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.
- Technology: Grade A Osram 5W LED chips & sealed DT connectors.
Â
Specifications:
- Input Power:Â 9-36V
- Beam Pattern:Â Flood & Spot Combination
- Beam Spread: 8° Spot & 20° Flood
- Power:Â 100W
- Current Draw:Â 6.6A @ 13.2V
- Raw Lumen:Â 9,520 lm
- Effective Lumen:Â 5,015 lm
- Beam @ 1 Lux:Â 528m
- LED Chips:Â Osram 5W
- Colour Temp:Â 6000-6500K
- Housing Material:Â 6063 Aluminium
- Housing Coating: DuPont®
- Lens Material: GE Lexan® Polycarbonate
- IP Rating:Â IP68 / IP69K
- Ventilation: Gore® PolyVent
- Weight:Â 1.68Kg
- Body Dimensions:Â (L)560 x (H)46 x (W)49mm
- Lens Dimensions:Â 20" (508mm)

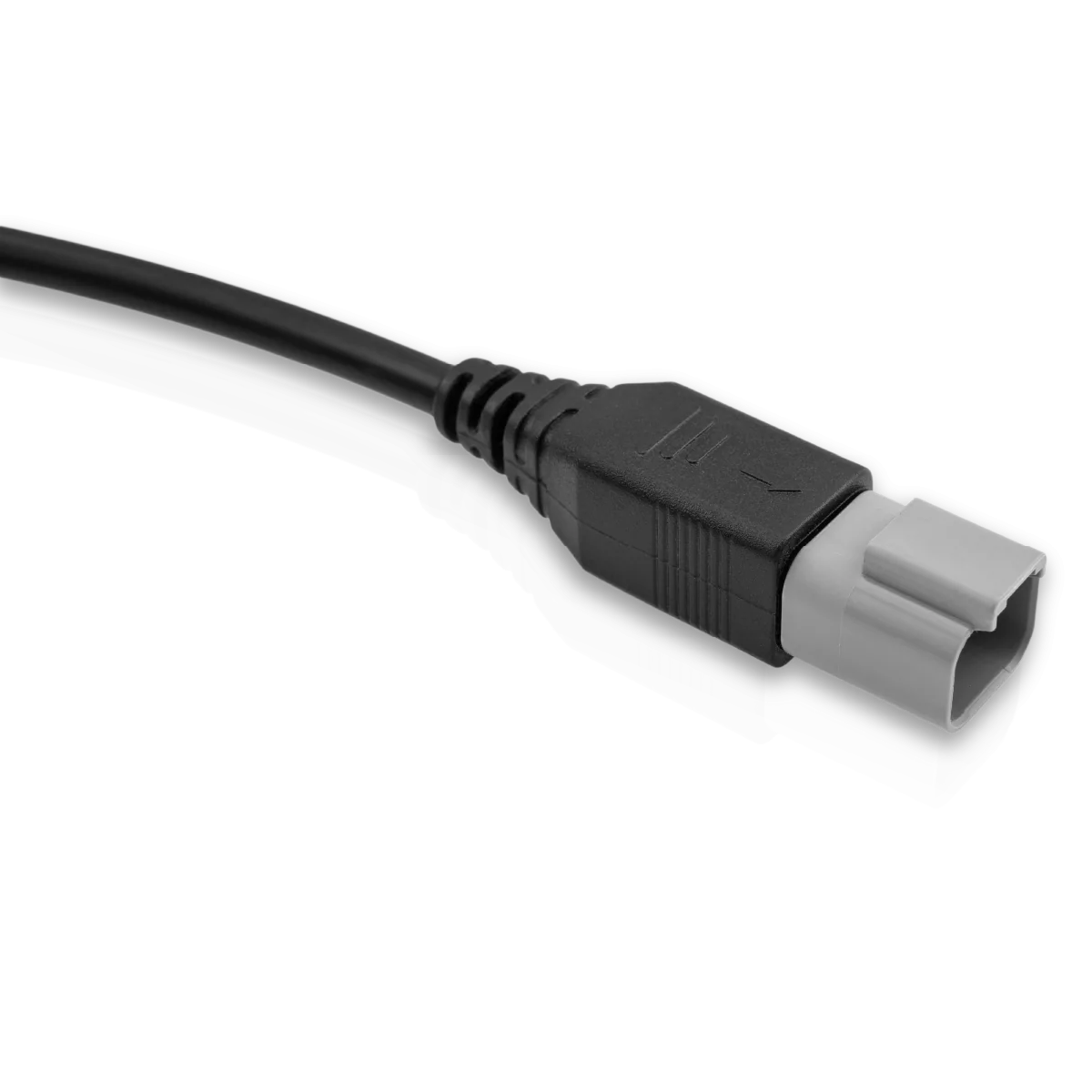

- Connector Type:Â DT Sealed
- Operating Temp: -40ºC - 145ºC
-
Certification:Â CE, RoHS, RCMÂ
Â
Required Harness: Ultimate9 Twin Output Harness
Â
Kit Includes:
• LED Light Bar

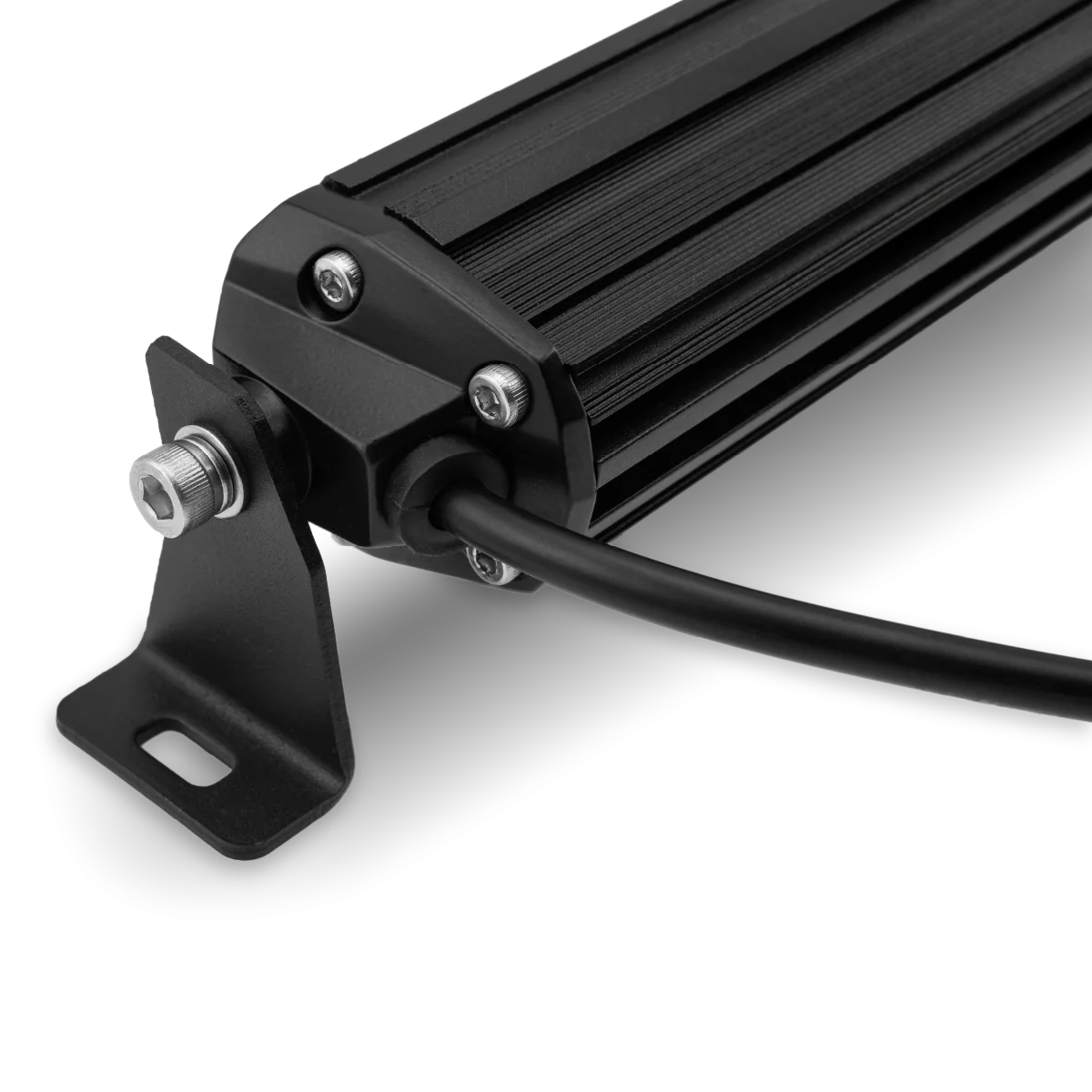

• Side-Mount Brackets & Hardware
Harnesses available separately*
Â
What Harness Do I Need?*
Ultimate9 20", 26", & 30" LED Light Bars, more often fitted at the front of vehicles, utilise the Twin Output Harness
Â
Note: The Twin Output Harness is capable of powering two 20", 26", or 30" bars.
